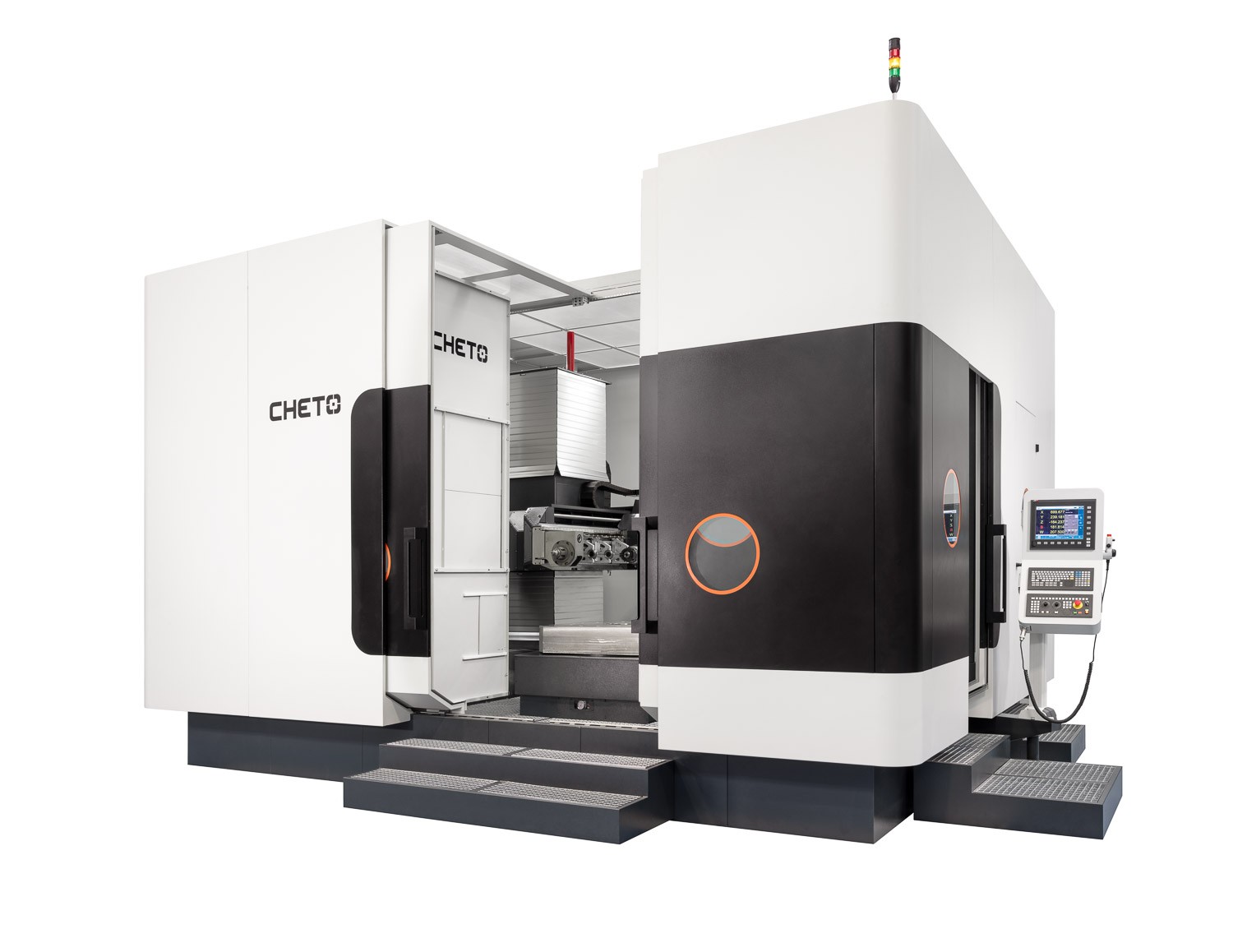

PWN

  • 1000
  • 2000
  • 3000
PWN

  • CNC Axis

  • X longitudinal travel
  • Y vertical travel
  • Z cross travel
  • W drilling one stroke
  • B table rotation

  • Drilling capacity

  • Max. Drilling stroke W+Z
  • Drilling Capacity

  • Milling capacity

  • Helical Threading
  • Tapping
  • Milling

  • Spindle

  • Speed
  • Spindle taper
  • Power
  • Torque

  • Automatic rotary table

  • Table size
  • Positioning type
  • Max load in rotation

  • Layout dimensions

  • Total weight
  • Foot print (WxL)
  • 1000
  • 1000 mm | 39.4 in
  • 1000 mm | 39.4 in
  • 800 mm | 31.5 in
  • 1700 mm | 67 in
  • 360,000 pos.
  • 1700+800 mm | 67+31.5 in
  • ø5-40 mm | ø0.2-1.58 in
  • Standard
  • M30
  • 300 cm3/min | 18.3 in3/min
  • 0-4500 rpm
  • ISO 50 DIN 69871
  • 11/15 kW | 15/20 hp
  • 140/200 Nm | 103/148 ft-lbs
  • 1300x1300 mm | 51.2x51.2 in
  • 360,000 pos.
  • 10,000 kg | 22,047 lbs
  • 21 Ton | 46,298 lbs
  • 5000x5510 mm | 196.8x216.9 in
  • 2000
  • 2000 mm | 78.7 in
  • 1200 mm | 47.2 in
  • 800 mm | 31.5 in
  • 1700 mm | 67 in
  • 360,000 pos.
  • 1700+800 mm | 67+31.5 in
  • ø5-40 mm | ø0.2-1.58 in
  • Standard
  • M32
  • 400 cm3/min | 24.4 in3/min
  • 0-4500 rpm
  • ISO 50 DIN 69871
  • 15/22 kW | 20/30 hp
  • 191/287 Nm | 141/212 ft-lbs
  • 1600x1300 mm | 63.0x51.2 in
  • 360,000 pos.
  • 20,000 kg | 44,093 lbs
  • 23 Ton | 50,707 lbs
  • 5970x5510 mm | 235.0x216.9 in
  • 3000
  • 3000 mm | 118.1 in
  • 1200 mm | 47.2 in
  • 800 mm | 31.5 in
  • 1700 mm | 67 in
  • 360,000 pos.
  • 1700+800 mm | 67+31.5 in
  • ø5-40 mm | ø0.2-1.58 in
  • Standard
  • M34
  • 500 cm3/min | 30.5 in3/min
  • 0-4500 rpm
  • ISO 50 DIN 69871
  • 22/33 kW | 30/45 hp
  • 280/420 Nm | 207/310 ft-lbs
  • 1800x1800 mm | 70.9x70.9 in
  • 360,000 pos.
  • 30,000 kg | 66,139 lbs
  • 28 Ton | 61,730 lbs
  • 6725x5850 mm | 264.8x230.3 in

CNC Axis
  • 1000
  • X longitudinal travel
  • 1000 mm | 39.4 in
  • Y vertical travel
  • 1000 mm | 39.4 in
  • Z cross travel
  • 800 mm | 31.5 in
  • W drilling one stroke
  • 1700 mm | 67 in
  • B table rotation
  • 360,000 pos.
  • 2000
  • X longitudinal travel
  • 2000 mm | 78.7 in
  • Y vertical travel
  • 1200 mm | 47.2 in
  • Z cross travel
  • 800 mm | 31.5 in
  • W drilling one stroke
  • 1700 mm | 67 in
  • B table rotation
  • 360,000 pos.
  • 3000
  • X longitudinal travel
  • 3000 mm | 118.1 in
  • Y vertical travel
  • 1200 mm | 47.2 in
  • Z cross travel
  • 800 mm | 31.5 in
  • W drilling one stroke
  • 1700 mm | 67 in
  • B table rotation
  • 360,000 pos.

Drilling capacity

  • 1000
  • Max. Drilling stroke W+Z
  • 1700+800 mm | 67+31.5 in
  • Drilling Capacity
  • ø5-40 mm | ø0.2-1.58 in
  • 2000
  • Max. Drilling stroke W+Z
  • 1700+800 mm | 67+31.5 in
  • Drilling Capacity
  • ø5-40 mm | ø0.2-1.58 in
  • 3000
  • Max. Drilling stroke W+Z
  • 1700+800 mm | 67+31.5 in
  • Drilling Capacity
  • ø5-40 mm | ø0.2-1.58 in

Milling capacity

  • 1000
  • Helical Threading
  • Standard
  • Tapping
  • M30
  • Milling
  • 300 cm3/min | 18.3 in3/min
  • 2000
  • Helical Threading
  • Standard
  • Tapping
  • M32
  • Milling
  • 400 cm3/min | 24.4 in3/min
  • 3000
  • Helical Threading
  • Standard
  • Tapping
  • M34
  • Milling
  • 500 cm3/min | 30.5 in3/min

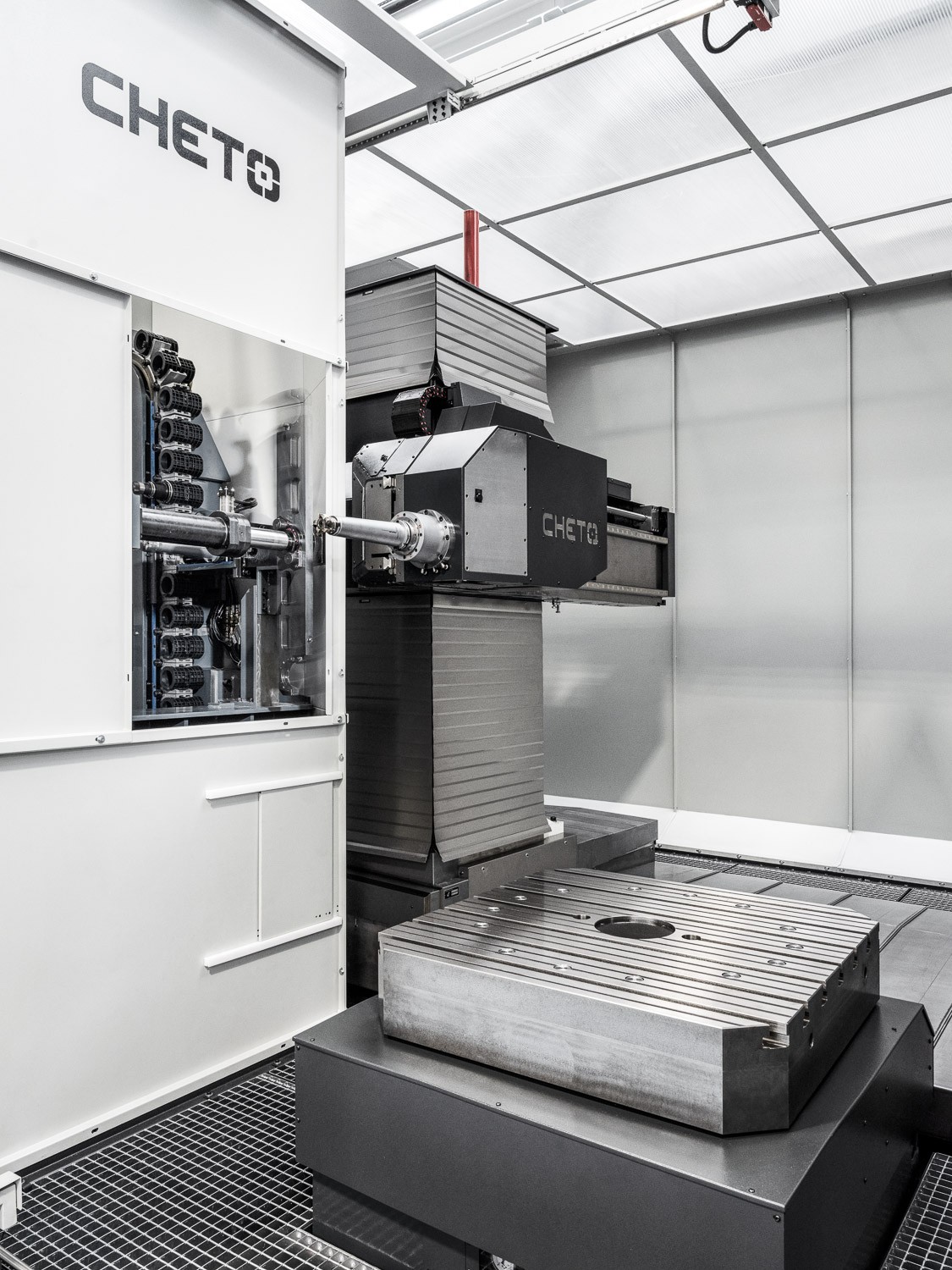

Spindle
  • 1000
  • Speed
  • 0-4500 rpm
  • Spindle taper
  • ISO 50 DIN 69871
  • Power
  • 11/15 kW | 15/20 hp
  • Torque
  • 140/200 Nm | 103/148 ft-lbs
  • 2000
  • Speed
  • 0-4500 rpm
  • Spindle taper
  • ISO 50 DIN 69871
  • Power
  • 15/22 kW | 20/30 hp
  • Torque
  • 191/287 Nm | 141/212 ft-lbs
  • 3000
  • Speed
  • 0-4500 rpm
  • Spindle taper
  • ISO 50 DIN 69871
  • Power
  • 22/33 kW | 30/45 hp
  • Torque
  • 280/420 Nm | 207/310 ft-lbs

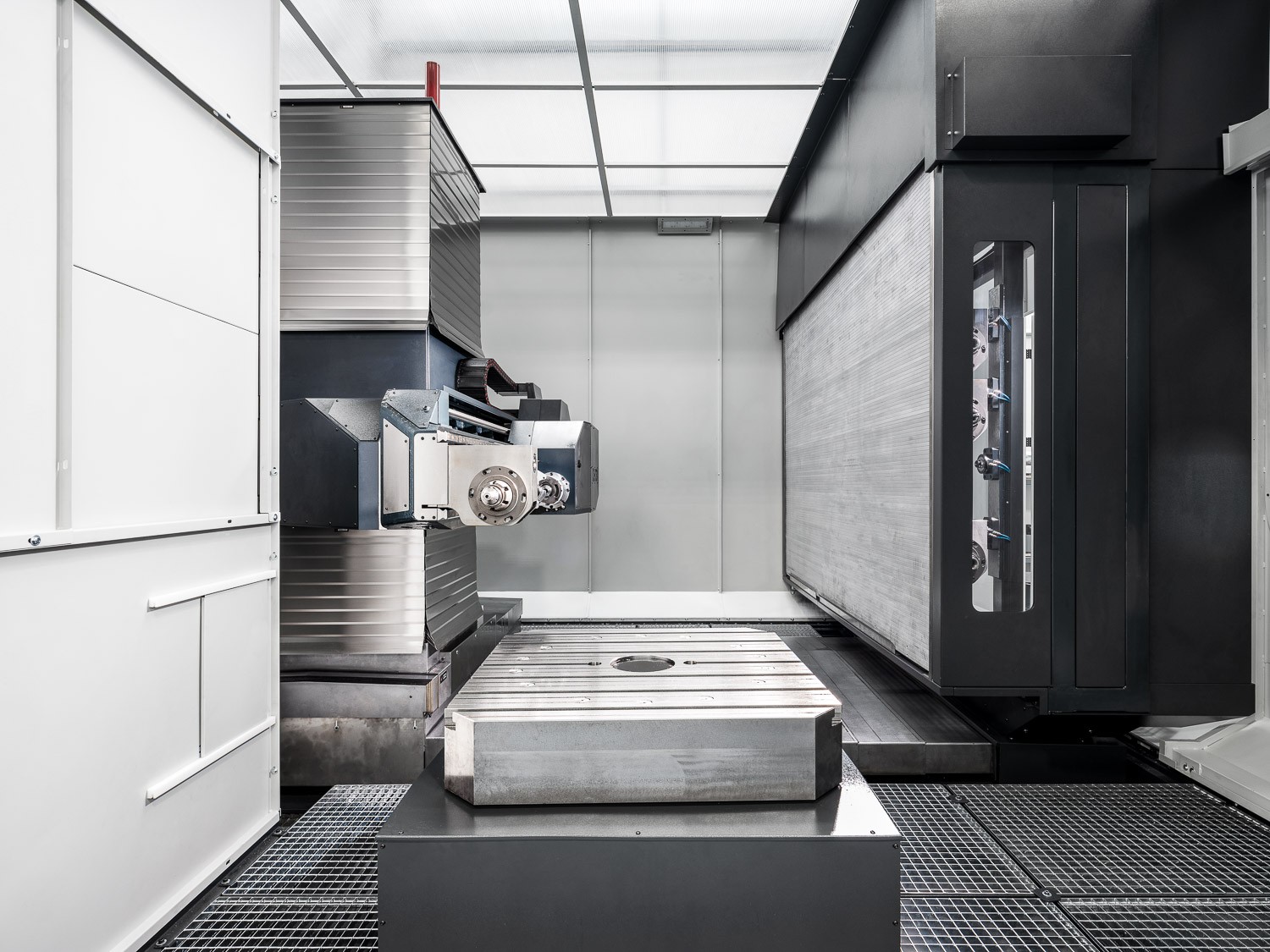

Automatic rotary table

  • 1000
  • Table size
  • 1300x1300 mm | 51.2x51.2 in
  • Positioning type
  • 360,000 pos.
  • Max load in rotation
  • 10,000 kg | 22,047 lbs
  • 2000
  • Table size
  • 1600x1300 mm | 63.0x51.2 in
  • Positioning type
  • 360,000 pos.
  • Max load in rotation
  • 20,000 kg | 44,093 lbs
  • 3000
  • Table size
  • 1800x1800 mm | 70.9x70.9 in
  • Positioning type
  • 360,000 pos.
  • Max load in rotation
  • 30,000 kg | 66,139 lbs

Layout dimensions

  • 1000
  • Total weight
  • 21 Ton | 46,298 lbs
  • Foot print (WxL)
  • 5000x5510 mm | 196.8x216.9 in
  • 2000
  • Total weight
  • 23 Ton | 50,707 lbs
  • Foot print (WxL)
  • 5970x5510 mm | 235.0x216.9 in
  • 3000
  • Total weight
  • 28 Ton | 61,730 lbs
  • Foot print (WxL)
  • 6725x5850 mm | 264.8x230.3 in
(Subject to modifications without prior notice)

Standard Equipment

  • CNC FAGOR 8060-M
  • Communication ethernet/USB
  • Electronic handwheel
  • Digital optical drives SERCOS
  • Remote I/Os
  • Nitrogen double counterweight
  • Linear roller guideways
  • RTCP function for piece origin (B axis)
  • Rigid tapping
  • Quick change between drilling/milling
  • High pressure pump 80 bar, 100 l/min | 1,160 psi, 26.5 gal/min
  • Coolant tank with automatic filtering
  • Carter submerge pump for oil recirculation
  • Automatic chip conveyor
  • Complete covering with movable doors, laminated glass windows and acrylic ceiling

Optional Equipment

  • CNC HEIDENHEIN TNC 640
  • ATC automatic tool change (24, 40, 60 up to 120 tools)
  • Wise software system
  • AC for electrical cabinet
  • Immersion chiller for oil/emulsion
  • Y axis = 1500 mm | 59.1 in
  • W axis = 2000 mm | 78.7 in
  • ATC Gundrill up to 5 tools
  • Absolute linear encoders in axes X, Y and Z
  • Exhaustion system
  • Electronic probe and laser measuring system
(Subject to modifications without prior notice)
