MT

  • 1500
  • 2500
MT

  • CNC Axis

  • X longitudinal travel
  • Y vertical travel
  • Z cross travel
  • W drilling one stroke
  • B table rotation
  • A tilting rotation

  • Drilling capacity

  • Max. Drilling stroke W+Z
  • Drilling Capacity

  • Milling capacity

  • Helical Threading
  • Tapping
  • Milling

  • Spindle

  • Speed
  • Spindle taper
  • Power
  • Torque

  • Automatic rotary table

  • Table size
  • Positioning type
  • Max load in rotation

  • Layout dimensions

  • Total weight
  • Foot print (WxL)
  • 1500
  • 1500 mm | 59.1 in
  • 1000 mm | 39.4 in
  • 650 mm | 25.6 in
  • 1630 mm | 64.2 in
  • 360,000 pos.
  • +25º/-25º
  • 1630+650 mm | 64.2+25.6 in
  • ø5-40 mm | ø0.2-1.58 in
  • Standard
  • M32
  • 400 cm3/min | 24.4 in3/min
  • 0-4500 rpm
  • ISO 50 DIN 69871
  • 15/22 kW | 20/30 hp
  • 191/287 Nm | 141/212 ft-lbs
  • 1300x1300 mm | 51.2x51.2 in
  • 360,000 pos.
  • 10,000 kg | 22,047 lbs
  • 29 Ton | 63,935 lbs
  • 5090x5500 mm | 200.4x216.5 in
  • 2500
  • 2500 mm | 98.4 in
  • 1200 mm | 47.2 in
  • 650 mm | 25.6 in
  • 1630 mm | 64.2 in
  • 360,000 pos.
  • +25º/-25º
  • 1630+650 mm | 64.2+25.6 in
  • ø5-40 mm | ø0.2-1.58 in
  • Standard
  • M34
  • 500 cm3/min | 30.5 in3/min
  • 0-4500 rpm
  • ISO 50 DIN 69871
  • 22/33 kW | 30/45 hp
  • 280/420 Nm | 207/310 ft-lbs
  • 1600x1300 mm | 63.0x51.2 in
  • 360,000 pos.
  • 15,000 kg | 33,070 lbs
  • 34 Ton | 74,958 lbs
  • 6090x5500 mm | 239.8x216.5 in

CNC Axis
  • 1500
  • X longitudinal travel
  • 1500 mm | 59.1 in
  • Y vertical travel
  • 1000 mm | 39.4 in
  • Z cross travel
  • 650 mm | 25.6 in
  • W drilling one stroke
  • 1630 mm | 64.2 in
  • B table rotation
  • 360,000 pos.
  • A tilting rotation
  • +25º/-25º
  • 2500
  • X longitudinal travel
  • 2500 mm | 98.4 in
  • Y vertical travel
  • 1200 mm | 47.2 in
  • Z cross travel
  • 650 mm | 25.6 in
  • W drilling one stroke
  • 1630 mm | 64.2 in
  • B table rotation
  • 360,000 pos.
  • A tilting rotation
  • +25º/-25º

Drilling capacity

  • 1500
  • Max. Drilling stroke W+Z
  • 1630+650 mm | 64.2+25.6 in
  • Drilling Capacity
  • ø5-40 mm | ø0.2-1.58 in
  • 2500
  • Max. Drilling stroke W+Z
  • 1630+650 mm | 64.2+25.6 in
  • Drilling Capacity
  • ø5-40 mm | ø0.2-1.58 in

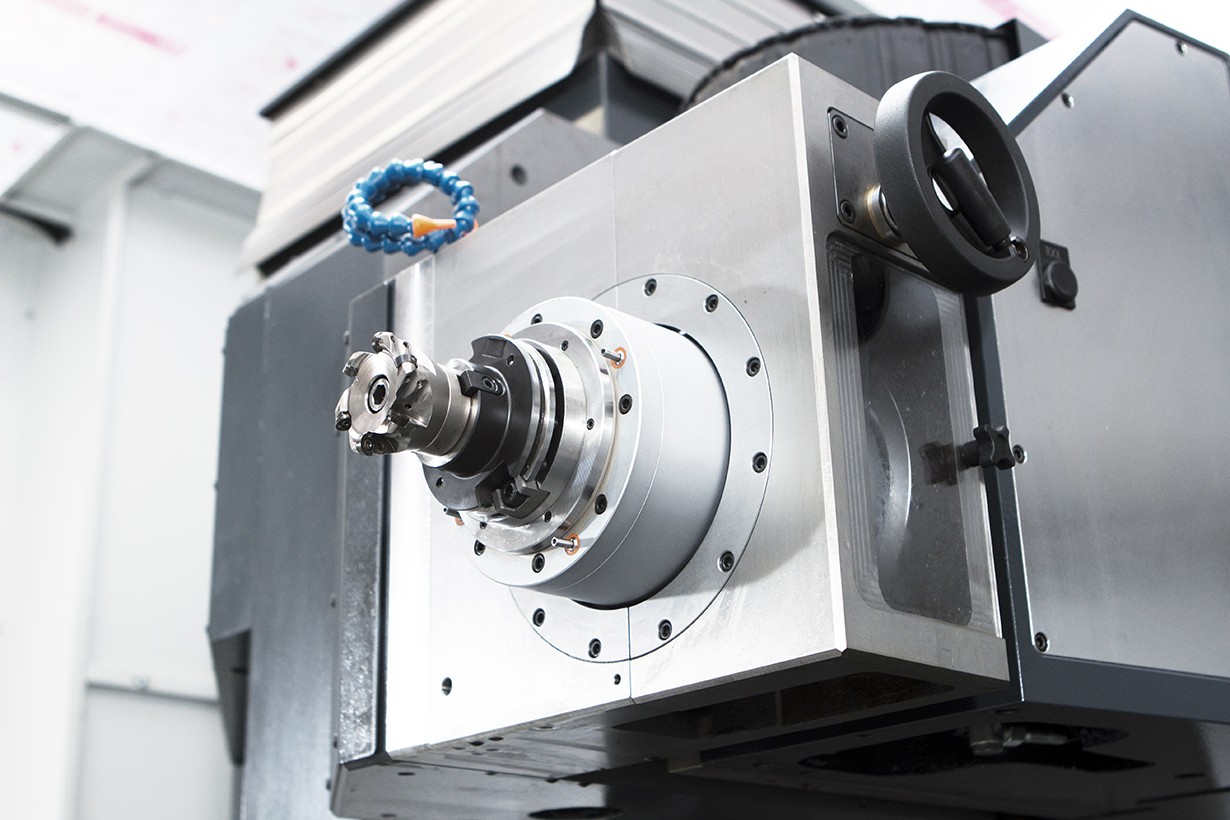

Milling capacity

  • 1500
  • Helical Threading
  • Standard
  • Tapping
  • M32
  • Milling
  • 400 cm3/min | 24.4 in3/min
  • 2500
  • Helical Threading
  • Standard
  • Tapping
  • M34
  • Milling
  • 500 cm3/min | 30.5 in3/min

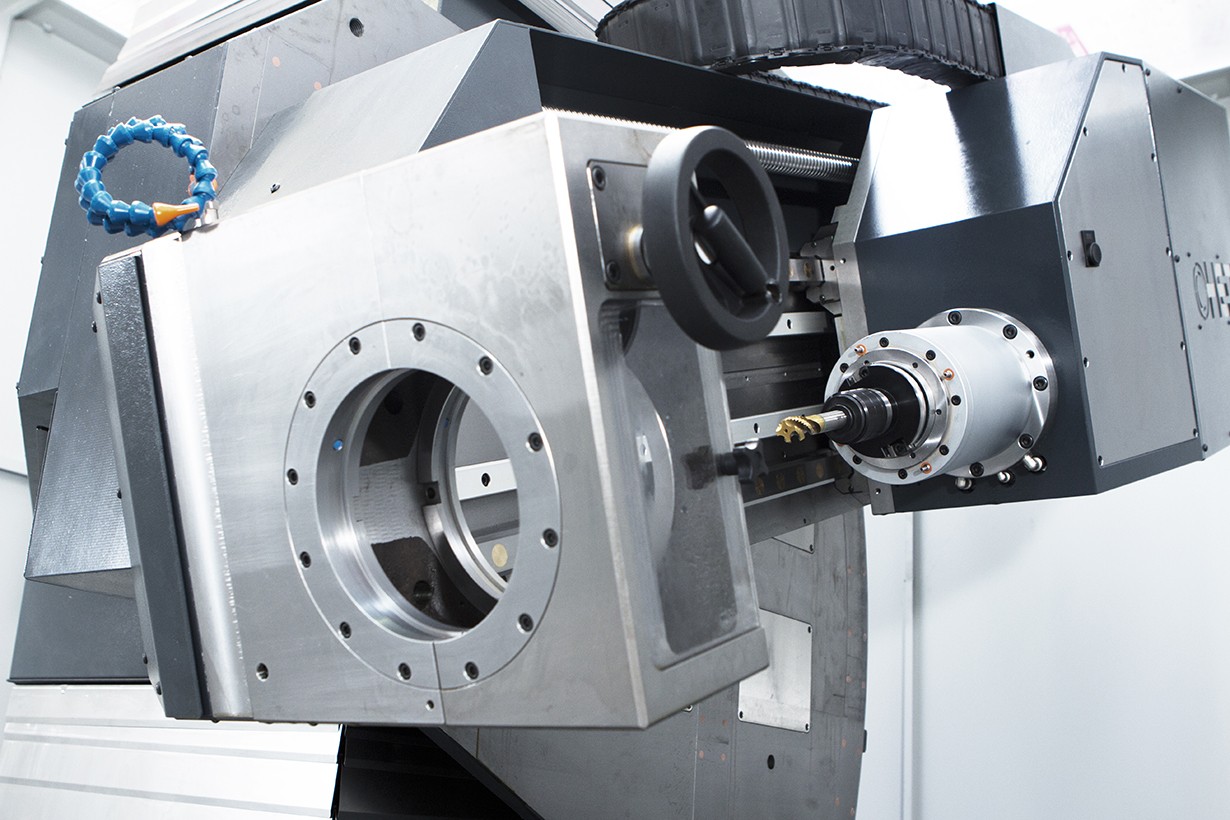

Spindle
  • 1500
  • Speed
  • 0-4500 rpm
  • Spindle taper
  • ISO 50 DIN 69871
  • Power
  • 15/22 kW | 20/30 hp
  • Torque
  • 191/287 Nm | 141/212 ft-lbs
  • 2500
  • Speed
  • 0-4500 rpm
  • Spindle taper
  • ISO 50 DIN 69871
  • Power
  • 22/33 kW | 30/45 hp
  • Torque
  • 280/420 Nm | 207/310 ft-lbs

Automatic rotary table

  • 1500
  • Table size
  • 1300x1300 mm | 51.2x51.2 in
  • Positioning type
  • 360,000 pos.
  • Max load in rotation
  • 10,000 kg | 22,047 lbs
  • 2500
  • Table size
  • 1600x1300 mm | 63.0x51.2 in
  • Positioning type
  • 360,000 pos.
  • Max load in rotation
  • 15,000 kg | 33,070 lbs

Layout dimensions

  • 1500
  • Total weight
  • 29 Ton | 63,935 lbs
  • Foot print (WxL)
  • 5090x5500 mm | 200.4x216.5 in
  • 2500
  • Total weight
  • 34 Ton | 74,958 lbs
  • Foot print (WxL)
  • 6090x5500 mm | 239.8x216.5 in
(Subject to modifications without prior notice)

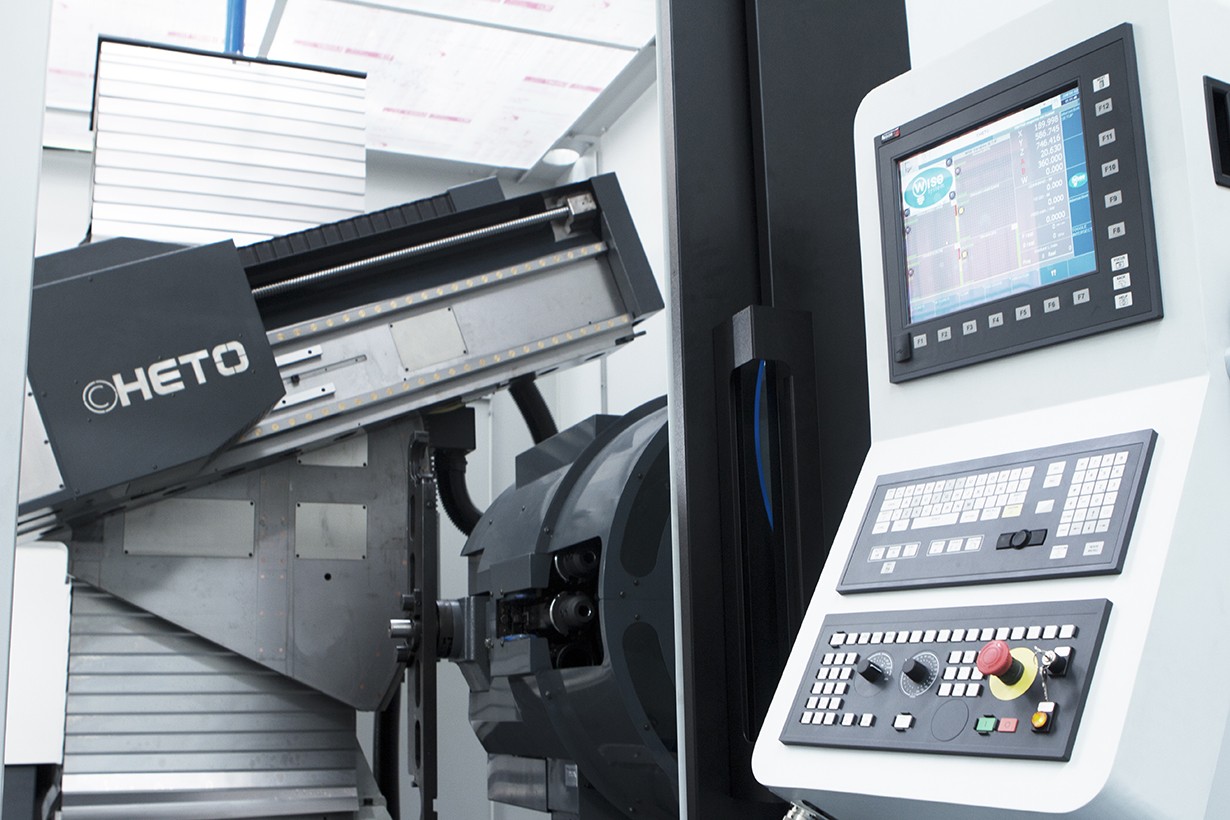

Standard Equipment

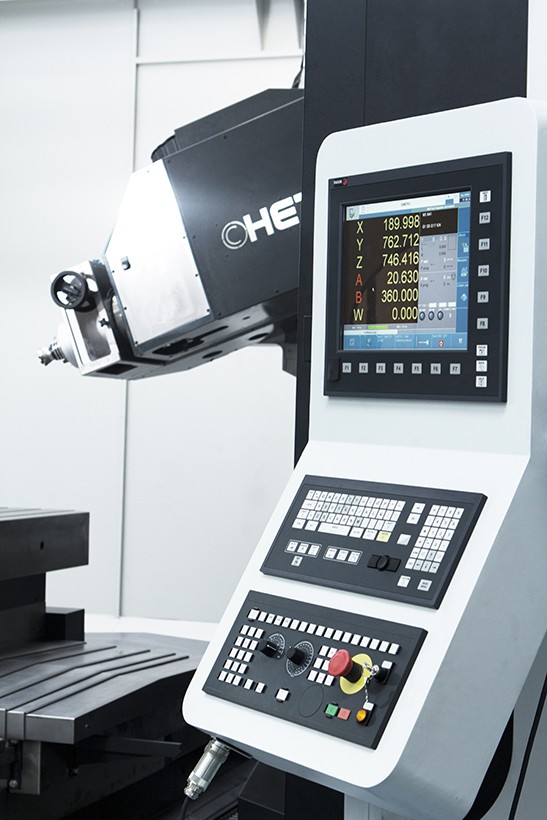

  • CNC FAGOR 8065 Windows 7
  • Communication ethernet/USB
  • Electronic handwheel
  • Digital optical drives SERCOS
  • Remote I/Os
  • Nitrogen double counterweight
  • Linear roller guideways
  • Glass scales in all axes except W axis
  • RTCP to tool (A axis)
  • RTCP function for piece origin (B axis)
  • Rigid tapping
  • Quick change between drilling/milling
  • High pressure pump 80 bar, 100 l/min | 1,160 psi, 26.5 gal/min
  • Coolant tank with automatic filtering
  • Carter submerge pump for oil recirculation
  • Automatic chip conveyor
  • Complete covering with movable doors

Optional Equipment

  • ATC automatic tool change (40 or 24 tools)
  • Spindle with 6,000 rpm

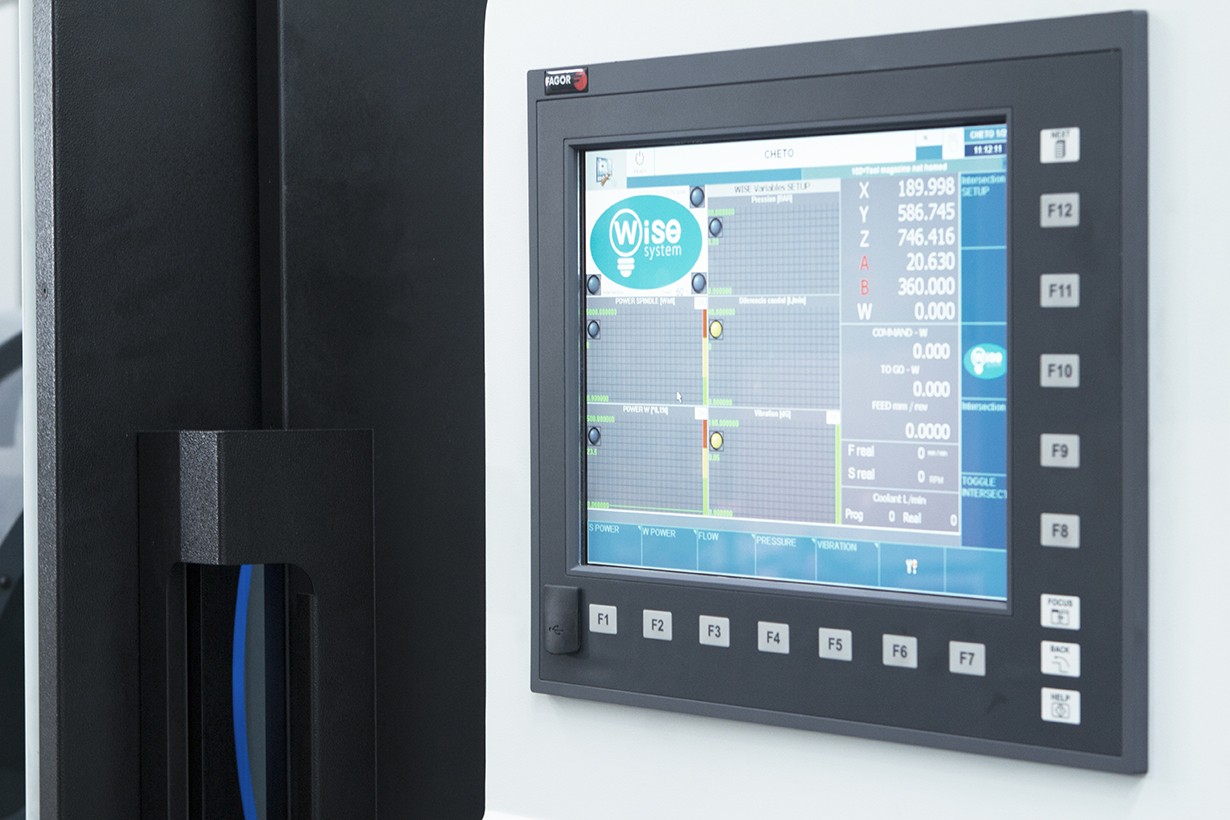

  • Wise software system
  • AC for electrical cabinet Immersion chiller for oil/emulsion
  • Table size 2000x2000 mm | 78.7x78.7 in
  • Mirror Version
  • Y axis = 1500 mm | 59.1 in
  • W axis = 2000 mm | 78.7 in
(Subject to modifications without prior notice)
